Description

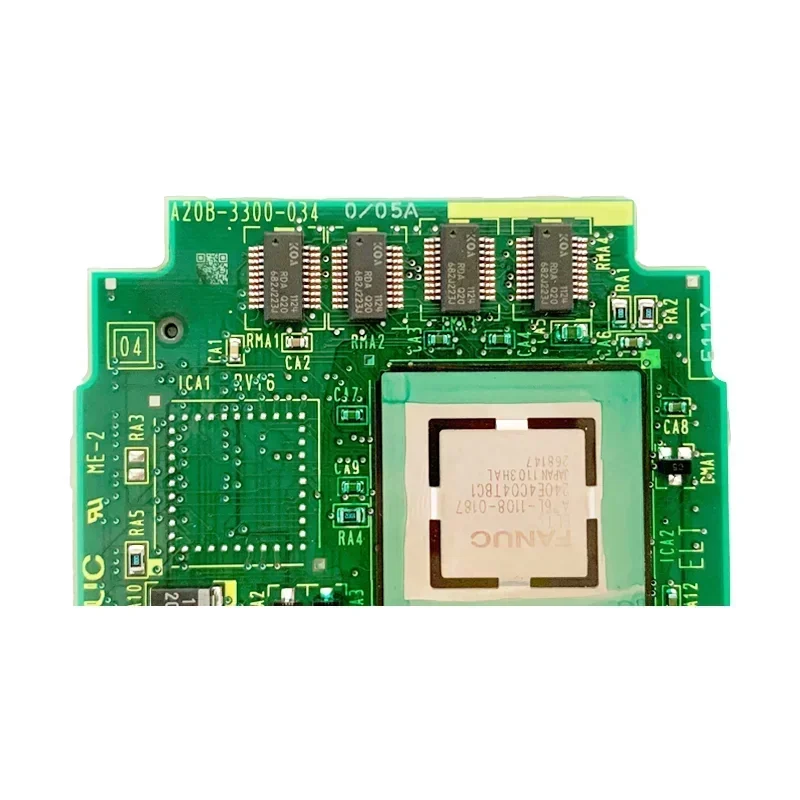

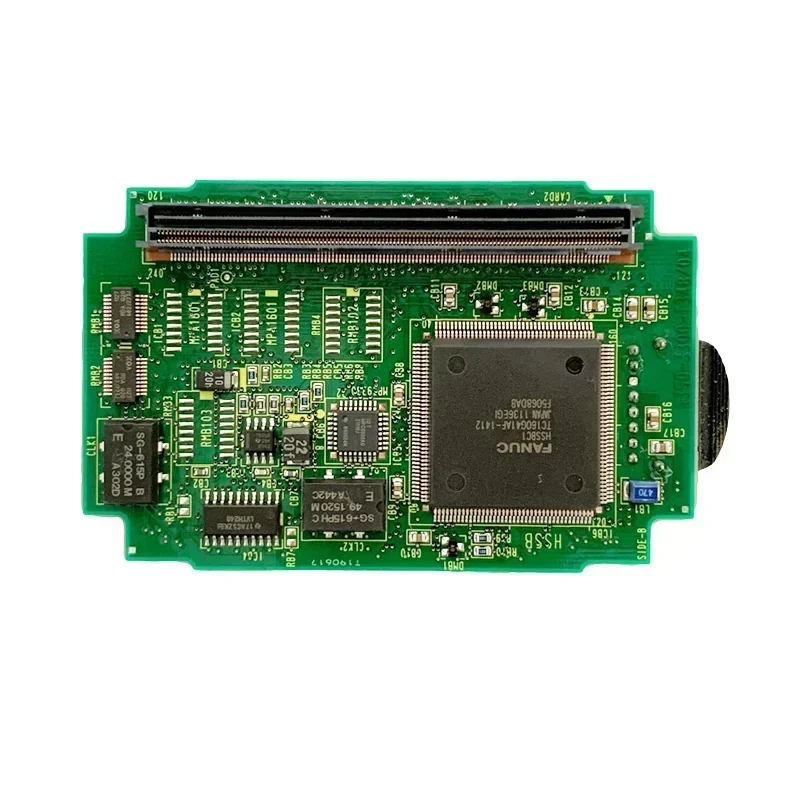

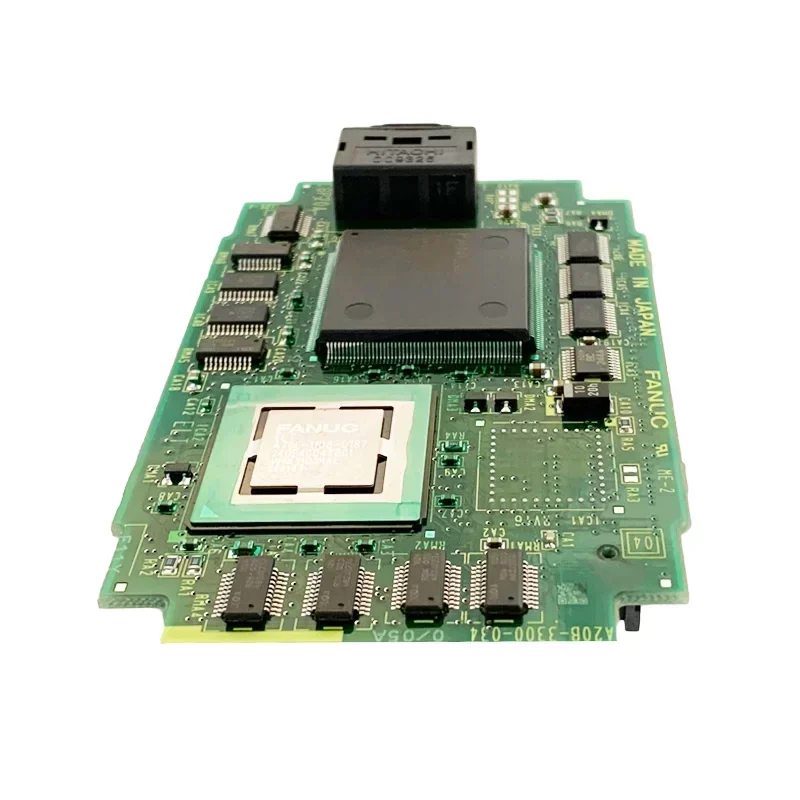

The FANUC A20B-3300-0340 is a high-reliability PC board essential for the operation of various FANUC CNC and robot controllers. This module functions as the interface board responsible for driving the LCD display and managing the Manual Data Input (MDI) panel communication. Replacing this board is the definitive solution for complex display and operator panel failures.
Key Technical Specifications:
Part Number: A20B-3300-0340
Manufacturer: FANUC
Module Type: Display Control PC Card with Embedded Ethernet
System Compatibility: Primarily used in FANUC 0i-B, 16i-B, 18i-B, and 21i-B series i Series control systems.
Key Interfaces: Includes connections for the LCD video output, MDI panel interface, and an Embedded Ethernet Port for network communication and remote diagnostics.
Application Notes & Troubleshooting:
This card is necessary when the operator interface fails to initialize or display correctly, or if communication with the panel is lost. Critical Note: Always verify that the full Part Number (including any suffix, e.g., A20B-3300-0340/04A) matches your existing unit to ensure software and hardware compatibility with your specific controller configuration.
Additional information
| Weight | 1 kg |
|---|---|
| Product PDF | A20B-3300-0340.pdf |
